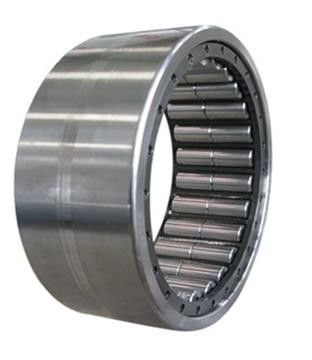

Cilindrische rol met dubbele rij, NN 3940, OD: 280 mm, ID: 200 mm, B: 60 mm, 10,6 kg
Product beschrijving:
Cilindrische rollagers met twee rijen hebben twee soorten constructies: cilindrische en conische gaten (code K).
Er zijn twee hoofdtypen: NNU-ontwerp en NN-ontwerp.
Het NN-type ontwerp heeft dubbele ribben op de binnenring en geen ribben op de buitenring.Het NNU-vormige ontwerp heeft geen blokkeerranden aan de binnenring en dubbele blokkeerranden aan de buitenring.De conische gatenstructuur kan de radiale speling tijdens de installatie aanpassen.Cilindrische rollagers met dubbele rij zorgen voor een zekere axiale verplaatsing tussen de as en de lagerzitting en kunnen worden gebruikt als niet-positionerende lagers.
Dit type lager heeft de voordelen van een compacte structuur, hoge stijfheid, hoog draagvermogen en kleine vervorming na belasting, waardoor het geschikt is voor het ondersteunen van spindels van werktuigmachines.
Parameter :
| maat lager | NOMINALE BELASTING | Model | structuur grootte | Installatie afmetingen | gewicht | |||||||||||
| mm | kN | Huidige model | oud model | mm | mm | kg | ||||||||||
| D | D | B | min | Cr | Kor | Fw | Ew | verdomd | damax | Damin | Damax | dbmin | ramax | |||
| 200 | 280 | 60 | 2.1 | 420 | 815 | NN 3940 | 3282940 | - | 259 | 216 | 221 | 263 | - | - | 2 | 10.6 |
| 280 | 80 | 2.1 | 484 | 960 | NN 4940K/W20 | 4182940Y | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 14.1 | |
| 280 | 80 | 2.1 | 570 | 1220 | NN 4940 | 4282940 | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 15.3 | |
| 280 | 80 | 2.1 | 570 | 1220 | NNU 4940 | 4482940 | 225 | - | 211 | 222 | - | 269 | 228 | 2 | 15.3 | |
| 310 | 82 | 2.1 | 655 | 1170 | NN 3040 | 3282140 | - | 282 | 211 | - | 285 | 299 | - | 2 | 22.7 | |
| 310 | 82 | 2.1 | 655 | 1170 | NNU 3040 | 3482140 | 232 | - | 211 | 223 | - | 293 | 237 | 2 | 22.7 | |
| 310 | 109 | 2.1 | 890 | 1730 | NN 4040 | 4282140 | - | 282 | 216 | 225 | 293 | - | - | 2 | 30.4 | |
| 220 | 300 | 60 | 2.1 | 440 | 895 | NN 3944 | 3282944 | - | 279 | 236 | 241 | - | 283 | - | 2 | 11.4 |
| 300 | 80 | 2.1 | 600 | 1330 | NN 4944 | 4282944 | - | 279 | 236 | 242 | - | 283 | - | 2 | 16.6 | |
| 300 | 80 | 2.1 | 600 | 1330 | NNU 4944 | 4482944 | 245 | - | 231 | 242 | - | 289 | 249 | 2 | 16.6 | |
| 340 | 90 | 3 | 815 | 1480 | NN 3044 | 3282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 29.6 | |
| 340 | 90 | 3 | 815 | 1480 | NNU 3044 | 3482144 | 254 | - | 230 | - | 313 | 327 | - | 2.5 | 30 | |
| 340 | 118 | 3 | 1190 | 2400 | NN 4044 | 4282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 39,8 | |
| 370 | 120 | 4 | 1050 | 1810 | NN 3144 | 3282744 | - | 331 | 241 | - | - | 346 | - | 3 | 51,9 | |
| 370 | 120 | 4 | 1050 | 1810 | NNU 3144 | 3482744 | 263 | - | 241 | - | - | 346 | 268 | 3 | 52.3 | |
| 240 | 300 | 60 | 1.1 | 405 | 1030 | NN 4848 | 4282848 | - | 283 | 248 | 255 | 287 | 290 | - | 1 | 9.77 |
| 300 | 60 | 1.1 | 358 | 930 | NNU4848 | - | 259 | - | 248 | 255 | - | 290 | 263 | 1 | 9.9 | |
| 320 | 60 | 2.1 | 460 | 975 | NN 3948 | 3282948 | - | 300 | 251 | 262 | - | 309 | - | 2 | 12.2 | |
| 320 | 80 | 2.1 | 625 | 1450 | NN 4948 | 4282948 | - | 300 | 251 | 262 | - | 309 | - | 2 | 17.9 | |
| 320 | 80 | 2.1 | 625 | 1450 | NNU 4948 | 4482948 | 263 | - | 251 | 262 | - | 309 | 269 | 2 | 18 | |
| 360 | 92 | 3 | 855 | 1600 | NN 3048 | 3282148 | - | 330 | 253 | - | 333 | 347 | - | 2.5 | 32,7 | |
| 360 | 92 | 3 | 855 | 1600 | NNU 3048 | 3482148 | 274 | - | 253 | 266 | - | 347 | 280 | 2.5 | 32,7 | |
| 360 | 118 | 3 | 1240 | 2600 | NN 4048 | 4282148 | - | 330 | 253 | 266 | 333 | 347 | - | 2.5 | 39.3 | |
| 360 | 118 | 3 | 1240 | 2600 | NNU 4048 | 4482148 | 274 | - | 253 | 266 | - | 347 | 281 | 2.5 | 42,7 | |
| 400 | 128 | 4 | 1170 | 2040 | NN 3148 | 3282748 | - | 358 | 256 | - | 362 | 384 | - | 3 | 64,2 | |
| 400 | 160 | 4 | 1880 | 3530 | NNU 4148 | 4482748 | 282 | - | 256 | 282 | - | 384 | 291 | 3 | 85 | |
| 260 | 360 | 75 | 2.1 | 670 | 1380 | NN 3952 | 3282952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 21.4 |
| 360 | 100 | 2.1 | 711 | 1540 | NN 4952K | 4182952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 29.2 | |
| 360 | 100 | 2.1 | 935 | 2100 | NN 4952 | 4282952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 28.3 | |
| 360 | 100 | 2.1 | 935 | 2100 | NNU 4952 | 4482952 | 292 | - | 271 | 288 | - | 349 | 296 | 2 | 31.1 | |
| 260 | 400 | 104 | 4 | 969 | 1810 | NN 3052K | 3182152 | - | 364 | 276 | - | 367 | 384 | - | 3 | 47.1 |
| 400 | 104 | 4 | 969 | 1810 | NN 3052 | 3282152 | - | 364 | 276 | - | 367 | 384 | - | 3 | 48,5 | |
| 400 | 140 | 4 | 1550 | 3250 | NN 4052 | 4282152 | - | 364 | 276 | - | 369 | 384 | - | 3 | 59,7 | |
| 400 | 140 | 4 | 1550 | 3250 | NNU 4052 | 4482152 | 300 | - | 276 | 289 | - | 384 | 299 | 3 | 65 | |
| 440 | 144 | 4 | 1480 | 2660 | NN 3152 | 3282752 | - | 393 | 276 | - | 415 | 424 | - | 3 | 89.1 | |
| 440 | 180 | 4 | 2200 | 4000 | NNU4152 | 4482752 | 306 | - | 276 | 300 | - | 424 | 310 | 3 | 113 | |
| 280 | 350 | 69 | 1.1 | 445 | 1160 | NN 4856 | 4282856 | - | 329 | 287,5 | - | - | 340 | - | 1 | 15.3 |
| 350 | 69 | 2 | 457 | 1200 | NNU4856K | - | 303 | - | 287,5 | 298 | - | 340 | 307 | 1 | 15.5 | |
| 380 | 75 | 2.1 | 695 | 1460 | NN 3956 | 3282956 | - | 355 | 291 | - | - | 369 | - | 2 | 22.7 | |
| 380 | 100 | 2.1 | 960 | 2230 | NN 4956 | 4284956 | - | 355 | 291 | - | - | 369 | - | 2 | 32,9 | |
| 380 | 100 | 2.1 | 960 | 2230 | NNU 4956 | 4482956 | 312 | - | 291 | 308 | - | 369 | 316 | 2 | 33 | |
| 420 | 106 | 4 | 1020 | 1950 | NN 3056K | 3182156 | - | 384 | 296 | - | 387 | 404 | - | 3 | 49.1 | |
| 420 | 106 | 4 | 1020 | 1950 | NN 3056 | 3282156 | - | 384 | 296 | - | 387 | 404 | - | 3 | 49,9 | |
| 420 | 106 | 4 | 1080 | 2080 | NNU3056 | - | 320 | - | 300 | - | - | 440 | 326 | 3 | 51,4 | |
| 460 | 146 | 5 | 1520 | 2790 | NN 3156 | 3282756 | - | 413 | 300 | - | 416 | 440 | - | 4 | 95,7 | |
| 300 | 380 | 80 | 2.1 | 690 | 1760 | NNU 4860 | 4482860 | 324 | - | 308 | 320 | - | 369 | 330 | 2 | 21.7 |
| 420 | 118 | 3 | 1230 | 2870 | NN 4960 | 4282960 | - | 388 | 314 | 335 | - | 398 | - | 2.5 | 51,6 | |
| 420 | 118 | 3 | 1230 | 2870 | NNU 4960 | 4482960 | 339 | - | 314 | 335 | - | 406 | 343 | 2.5 | 51,9 | |
| 460 | 118 | 4 | 1180 | 2250 | NN 3060 | 3282160 | - | 418 | 316 | - | 421 | 444 | - | 3 | 71,7 | |
| 460 | 118 | 4 | 1180 | 2250 | NN 3060K | 3182160 | - | 418 | 316 | - | 421 | 444 | - | 3 | 69,6 | |
| 460 | 160 | 4 | 1920 | 4100 | NN4060 | - | - | 418 | 316 | - | - | 440 | - | 3 | 97,6 | |
| 500 | 160 | 5 | 1760 | 3150 | NN 3160 | 3282760 | - | 448 | 320 | - | 450 | 480 | - | 4 | 125 | |
| 500 | 160 | 5 | 1760 | 3150 | NNU 3160 | 3482760 | 358 | - | 320 | - | - | 480 | 365 | 4 | 126 | |
| 320 | 400 | 80 | 2.1 | 700 | 1840 | NNU 4864 | 4482864 | 346 | - | 328 | 340 | - | 389 | 350 | 2 | 22.8 |
| 440 | 118 | 3 | 1260 | 3050 | NN 4964 | 4282964 | - | 408 | 334 | 355 | - | 427 | - | 2.5 | 50,2 | |
| 440 | 118 | 3 | 1260 | 3050 | NN 4964K | 4182964 | - | 408 | 334 | 355 | - | 427 | - | 2.5 | 52 | |
| 440 | 118 | 3 | 1260 | 3050 | NNU 4964 | 4482964 | 359 | - | 334 | 355 | - | 426 | 363 | 2.5 | 54,9 | |
| 480 | 121 | 4 | 1350 | 2670 | NN 3064 | 3282164 | - | 438 | 336 | - | 442 | 464 | - | 3 | 76,6 | |
| 480 | 121 | 4 | 1350 | 2670 | NNU 3064 | 3482164 | 366 | - | 336 | 353 | 442 | 464 | - | 3 | 76,9 | |
| 480 | 160 | 4 | 1960 | 4300 | NNU 4064 | 4482164 | 367 | - | 336 | 353 | - | 464 | 364 | 3 | 103 | |
| 320 | 540 | 176 | 5 | 2090 | 3750 | NNU 3164 | 3482764 | 384 | - | 340 | 379 | - | 520 | 389 | 4 | 154 |
| 340 | 460 | 90 | 3 | 905 | 2020 | NN 3968 | 3282968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 42,9 |
| 460 | 118 | 3 | 1040 | 2450 | NN 4968K | 4182968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 53,8 | |
| 460 | 118 | 3 | 1350 | 3400 | NN 4968 | 4282968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 52.1 | |
| 460 | 118 | 3 | 1350 | 3400 | NNU 4968 | 4482968 | 379 | - | 354 | 375 | - | 446 | 383 | 2.5 | 57,8 | |
| 520 | 133 | 5 | 1560 | 3020 | NN 3068K | 3182168 | - | 473 | 360 | - | 477 | 500 | - | 4 | 101 | |
| 520 | 133 | 5 | 1560 | 3020 | NN 3068 | 3282168 | - | 473 | 360 | - | 477 | 500 | - | 4 | 104 | |
| 520 | 133 | 5 | 1560 | 3020 | NNU3068 | 3482168 | 387 | - | 360 | - | - | 500 | 400 | 4 | 104 | |
| 520 | 180 | 5 | 2420 | 5350 | NNU 4068 | 4482168 | 385 | - | 360 | 377 | - | 500 | 389 | 4 | 141 | |
| 360 | 480 | 90 | 3 | 930 | 2130 | NN 3972 | 3282972 | - | 448 | 373 | - | 453 | 467 | - | 2.5 | 44,9 |
| 480 | 118 | 3 | 1390 | 3550 | NNU 4972 | 4482972 | 399 | - | 374 | 395 | - | 466 | 403 | 2.5 | 60,6 | |
| 540 | 134 | 5 | 1630 | 3240 | NN 3072 | 3282172 | - | 493 | 380 | - | 497 | 520 | - | 4 | 106 | |
| 540 | 134 | 5 | 1630 | 3240 | NN 3072K | 3182172 | - | 493 | 380 | - | 497 | 520 | - | 4 | 106 | |
| 540 | 134 | 5 | 1630 | 3240 | NNU 3072 | 3482172 | 413 | - | 380 | - | - | 520 | 420 | 4 | 108 | |
| 540 | 180 | 5 | 2530 | 5450 | NN 4072 | 3282172 | - | 496 | 380 | 397 | - | 520 | - | 4 | 132 | |
| 420 | 620 | 150 | 5 | 2130 | 4450 | NN 3084 | 3282184 | - | 568 | 440 | - | 574 | 600 | - | 4 | 154 |
| 620 | 150 | 5 | 2130 | 4450 | NNU 3084 | 3482184 | 478 | - | 440 | - | - | 600 | 474 | 4 | 155 | |
| 620 | 200 | 5 | 3150 | 7100 | NN 4084 | 4282184 | - | 571 | 440 | - | 574 | 600 | - | 4 | 189 | |
| 620 | 200 | 5 | 3400 | 7850 | NNU 4084 | 4482184 | 469 | - | 440 | 460 | - | 600 | 474 | 4 | 209 | |
| 700 | 224 | 6 | 3550 | 6800 | NNU 3184 | 3482784 | 501 | - | 444 | - | - | 660 | 508 | 5 | 347 | |
| 440 | 540 | 100 | 2.1 | 950 | 2790 | NNU 4888 | 4482888 | 470 | - | 448 | 464 | - | 529 | 476 | 2 | 49,5 |
| 650 | 157 | 6 | 2360 | 4900 | NN 3088 | 3282188 | - | 596 | 466 | - | 600 | 624 | - | 5 | 177 | |
| 650 | 157 | 6 | 2360 | 4900 | NNU 3088 | 3482188 | 500 | - | 466 | - | - | 624 | 507 | 5 | 178 | |
| 720 | 226 | 6 | 3500 | 6800 | NN 3188 | 3282788 | - | 649 | 466 | - | - | 680 | - | 5 | 357 | |
| 460 | 580 | 118 | 3 | 1200 | 3600 | NNU4892 | 4482892 | 497 | - | 474 | 489 | - | 566 | 502 | 2.5 | 76 |
| 620 | 118 | 4 | 1610 | 3700 | NN 3992 | 3282992 | - | 578 | 476 | 504 | - | 604 | - | 3 | 94,5 | |
| 620 | 160 | 4 | 2400 | 6200 | NNU 4992 | 4482992 | 510 | - | 476 | 504 | - | 604 | 515 | 3 | 140 | |
| 680 | 163 | 6 | 2470 | 5070 | NN 3092K | 3182192 | - | 624 | 484 | - | 627 | 654 | - | 5 | 204 | |
| 680 | 163 | 6 | 2470 | 5070 | NN 3092 | 3282192 | - | 624 | 484 | - | 627 | 654 | - | 5 | 204 | |
| 480 | 650 | 170 | 5 | 2690 | 7000 | NN 4996 | 4282996 | - | 607 | 500 | - | - | 630 | - | 4 | 164 |
| 480 | 700 | 165 | 6 | 2600 | 5550 | NN 3096 | 3282196 | - | 643 | 506 | - | 648 | 674 | - | 5 | 211 |
| 700 | 218 | 6 | 4300 | 8600 | NNU4096 | 4482196 | 533 | - | 506 | 523 | - | 674 | 538 | 5 | 273 | |
| 790 | 248 | 7.5 | 4050 | 8100 | NN 3196 | 3282796 | - | 708 | 512 | - | 718 | 758 | - | 6 | 447 | |
| 500 | 670 | 170 | 5 | 2720 | 7200 | NNU 49/500 | 44829/500 | 554 | - | 520 | 548 | - | 650 | 559 | 4 | 171 |
| 720 | 167 | 6 | 2580 | 5600 | NN30/500 | 32821/500 | - | 664 | 526 | - | 668 | 694 | - | 5 | 205 | |
| 720 | 167 | 6 | 2580 | 5600 | NNU 30/500 | 34821/500 | 563 | - | 526 | - | - | 694 | 570 | 5 | 220 | |
| 530 | 710 | 136 | 5 | 2040 | 4900 | NN39/530 | 32829/530 | - | 663 | 550 | 582 | - | 690 | - | 4 | 149 |
| 710 | 180 | 5 | 2900 | 7050 | NNU 49/530 | 44829/530 | 588 | - | 550 | 582 | - | 690 | 593 | 4 | 202 | |
| 780 | 185 | 6 | 3200 | 6900 | NN30/530 | 32821/530 | - | 715 | 556 | - | 720 | 754 | - | 5 | 296 | |
| 560 | 750 | 140 | 5 | 2370 | 4860 | NN39/560 | 32829/530 | - | 705 | 576 | - | 711 | 735 | - | 4 | 188 |
| 750 | 190 | 5 | 3250 | 8700 | NNU 49/560 | 44829/560 | 623 | - | 580 | 619 | - | 730 | 628 | 4 | 239 | |
| 780 | 180 | 8 | 2400 | 6400 | NN6/560 | 2872/560 | - | 725 | 580 | - | 732 | 765 | - | 5 | 266 | |
| 820 | 195 | 8 | 2460 | 6560 | NN 30/560K | 31821/560 | - | 756 | 586 | - | 761 | 794 | - | 5 | 341 | |
| 820 | 258 | 6 | 4100 | 10600 | NN40/560 | 42821/560 | - | 745 | 586 | - | - | 794 | - | 5 | 472 | |
| 820 | 258 | 6 | 5720 | 13100 | NNU 40/560 | 44821/560 | 626 | - | 586 | 615 | - | 794 | 632 | 5 | 420 | |
| 560 | 920 | 280 | 7.5 | 6850 | 13700 | NNU 31/560 | 34827/560 | 650 | - | 630 | - | - | - | 655 | 6 | 738 |
| 600 | 800 | 200 | 5 | 3850 | 10500 | NNU 49/600 | 44829/600 | 666 | - | 620 | 662 | - | 780 | 672 | 4 | 284 |
| 800 | 200 | 5 | 3450 | 7180 | NN 49/600K | 41829/600 | - | 755 | 620 | - | - | 780 | - | 4 | 257 | |
| 870 | 200 | 6 | 3420 | 7785 | NN30/600 | 32821/600 | - | 803 | 626 | - | 808 | 844 | - | 5 | 355 | |
| 870 | 272 | 6 | 6138 | 14040 | NNU 40/600 | 44821/600 | 664 | - | 626 | 653 | - | 844 | 670 | 5 | 530 | |
| 980 | 375 | 7.5 | 8910 | 18990 | NNU 41/600 | 44827/600 | 699 | - | 633 | 682 | - | 947 | 706 | 6 | 1100 | |
| 630 | 780 | 150 | 4 | 2290 | 7000 | NNU 48/630 | 44828/630 | 676 | - | 646 | 667 | - | 764 | 676 | 3 | 160 |
| 850 | 218 | 6 | 4200 | 11400 | NN49/630 | 42829/630 | - | 793 | 656 | - | - | 824 | - | 5 | 328 | |
| 850 | 218 | 6 | 4000 | 10800 | NNU 49/630 | 44829/630 | 704 | - | 656 | 699 | - | 824 | 710 | 5 | 356 | |
| 920 | 212 | 7.5 | 3860 | 8820 | NN30/630 | 32821/630 | - | 845 | 663 | - | 851 | 887 | - | 6 | 430 | |
| 920 | 290 | 7.5 | 6885 | 15750 | NNU 40/630 | 44821/630 | 699 | - | 663 | 688 | - | 887 | 705 | 6 | 635 | |
| 1030 | 400 | 7.5 | 9900 | 21600 | NNU 41/630 | 44827/630 | 734 | - | 663 | 716 | - | 997 | 740 | 6 | 1330 | |
| 670 | 900 | 230 | 6 | 4450 | 12330 | NN49/670 | 42829/670 | - | 838 | 696 | - | - | 874 | - | 5 | 419 |
| 900 | 230 | 6 | 4950 | 13100 | NNU 49/670 | 44829/670 | 738 | - | 696 | 732 | - | 874 | 744 | 5 | 430 | |
| 980 | 230 | 7.5 | 4620 | 10260 | NN30/670K | 31821/670 | - | 901 | 703 | - | 907 | 947 | - | 6 | 597 | |
| 670 | 980 | 308 | 7.5 | 7578 | 17640 | NNU 40/670 | 44821/670 | 744 | - | 703 | 733 | - | 947 | 750 | 6 | 765 |
| 1090 | 412 | 7.5 | 10890 | 22950 | NNU 41/670 | 44827/670 | 774 | - | 703 | 756 | - | 1057 | 780 | 6 | 1500 | |
| 710 | 870 | 160 | 4 | 2640 | 8350 | NNU 48/710 | 44828/710 | 759 | - | 726 | 750 | - | 854 | 759 | 3 | 203 |
| 950 | 243 | 6 | 4850 | 13770 | NNU49/710 | 44829/710 | 782 | - | 736 | 776 | - | 924 | 788 | 5 | 480 | |
| 1030 | 236 | 7.5 | 5148 | 11880 | NN30/710 | 32821/710 | - | 951 | 743 | - | 957 | 997 | - | 6 | 590 | |
| 1030 | 315 | 7.5 | 8415 | 19440 | NNU 40/710 | 44821/710 | 784 | - | 743 | 772 | - | 997 | 790 | 6 | 850 | |
| 1150 | 438 | 9.5 | 12060 | 25650 | NNU 41/710 | 44827/710 | 820 | - | 750 | 800 | - | 1110 | 826 | 8 | 1790 | |
| 750 | 920 | 170 | 5 | 3070 | 9180 | NN48/750 | 42828/750 | - | 879 | 770 | - | 887 | 904 | - | 4 | 240 |
| 1000 | 250 | 6 | 4950 | 14400 | NNU 49/750 | 44829/750 | 831 | - | 776 | 824 | - | 974 | 837 | 5 | 540 | |
| 1090 | 250 | 7.5 | 6336 | 14400 | NN30/750 | 32821/750 | - | 1007 | 783 | - | 1011 | 1057 | - | 6 | 705 | |
| 1090 | 335 | 7.5 | 9180 | 21600 | NNU 40/750 | 44821/750 | 830 | - | 783 | 816 | - | 1057 | 836 | 6 | 925 | |
| 1220 | 475 | 9.5 | 14490 | 31950 | NNU 41/750 | 44827/750 | 871 | - | 790 | 850 | - | 1180 | 877 | 8 | 2230 | |
| 800 | 1060 | 258 | 6 | 5247 | 15300 | NNU 49/800 | 44829/800 | 884 | - | 826 | 876 | - | 1034 | 890 | 5 | 615 |
| 1150 | 258 | 7.5 | 7029 | 16200 | NN30/800 | 32821/800 | - | 1065 | 833 | - | 1071 | 1117 | - | 6 | 790 | |
| 1150 | 345 | 7.5 | 9720 | 23400 | NNU 40/800 | 44821/800 | 885 | - | 833 | 871 | - | 1117 | 891 | 6 | 1140 | |
| 800 | 1280 | 475 | 9.5 | 14850 | 32850 | NNU 41/800 | 44827/800 | 921 | - | 840 | 900 | - | 1240 | 928 | 8 | 2390 |
| 850 | 1030 | 180 | 5 | 3400 | 11400 | NNU48/850 | 44828/850 | 905 | - | 888 | - | - | - | 912 | 4 | 310 |
| 1120 | 272 | 6 | 5346 | 16200 | NNU 49/850 | 44829/850 | 939 | - | 876 | 930 | - | 1094 | 946 | 5 | 715 | |
| 1220 | 272 | 7.5 | 7128 | 16740 | NN30/850 | 32821/850 | - | 1130 | 883 | - | 1136 | 1187 | - | 6 | 940 | |
| 1220 | 365 | 7.5 | 10530 | 25650 | NNU 40/850 | 44821/850 | 940 | - | 883 | 923 | - | 1187 | 947 | 6 | 1340 | |
| 1360 | 500 | 6 | 19080 | 40500 | NNU 41/850 | 44827/850 | 976 | - | 897 | 935 | - | 1334 | 963 | 5 | 2900 | |
| 900 | 1180 | 280 | 6 | 5940 | 18000 | NNU 49/900 | 44829/900 | 986 | - | 926 | 977 | - | 1154 | 993 | 5 | 805 |
| 1280 | 280 | 7.5 | 7425 | 18000 | NN30/900 | 32821/900 | - | 1185 | 933 | - | 1191 | 1257 | - | 6 | 1050 | |
| 1280 | 375 | 7.5 | 11520 | 28350 | NNU 40/900 | 44821/900 | 990 | - | 933 | 963 | - | 1257 | 997 | 6 | 1500 | |
| 1420 | 515 | 6 | 19800 | 42750 | NNU 41/900 | 44827/900 | 1032 | - | 947 | 1008 | - | 1394 | 1039 | 5 | 3180 | |
| 950 | 1250 | 300 | 7.5 | 6633 | 20160 | NNU 49/950 | 44829/950 | 1046 | - | 983 | 1036 | - | 1217 | 1053 | 6 | 960 |
| 1360 | 300 | 7.5 | 8217 | 20160 | NN30/950 | 32821/950 | - | 1255 | 983 | - | 1263 | 1327 | - | 6 | 1300 | |
| 1360 | 412 | 7.5 | 12780 | 31950 | NNU 40/950 | 44821/950 | 1050 | - | 983 | 1033 | - | 1327 | 1057 | 6 | 1900 | |
| 950 | 1500 | 545 | 6 | 22950 | 51300 | NNU 41/950 | 44827/950 | 1092 | - | 997 | 1068 | - | 1474 | 1099 | 5 | 3830 |
| 1000 | 1320 | 315 | 7.5 | 7722 | 23400 | NNU 49/1000 | 44829/1000 | 1103 | - | 1033 | 1096 | - | 1287 | 1110 | 6 | 1250 |
| 1000 | 1320 | 315 | 7.5 | 8580 | 25200 | NN49/1000 | 42829/1000 | - | 1238 | 1033 | - | 1249 | 1287 | - | 6 | 1200 |
| 1420 | 308 | 7.5 | 9090 | 22050 | NN 30/1000 | 32821/1000 | - | 1316 | 1033 | - | 1324 | 1387 | - | 6 | 1400 | |
| 1420 | 412 | 7.5 | 13860 | 34200 | NNU 40/1000 | 44821/1000 | 1101 | - | 1033 | 1084 | - | 1387 | 1108 | 6 | 2000 | |
| 1580 | 580 | 6 | 24750 | 55800 | NNU 41/1000 | 44827/1000 | 1154 | - | 1047 | 1128 | - | 1474 | 1161 | 5 | 4270 | |
| 1060 | 1400 | 335 | 7.5 | 9450 | 27450 | NNU 49/1060 | 44829/1060 | 1160 | - | 1093 | 1150 | - | 1367 | 1167 | 6 | 1350 |
| 1500 | 325 | 9.5 | 9900 | 24750 | NN30/1060 | 32821/1060 | - | 1391 | 1100 | - | 1399 | 1460 | - | 8 | 1650 | |
| 1660 | 600 | 7.5 | 27270 | 62550 | NNU 41/1060 | 44827/1060 | 1214 | - | 1116 | 1189 | - | 1627 | 1221 | 6 | 5070 | |
| 1120 | 1460 | 335 | 7.5 | 9450 | 28350 | NNU 49/1120 | 44829/1120 | 1220 | - | 1153 | 1210 | - | 1427 | 1227 | 6 | 1450 |
| 1750 | 630 | 7.5 | 30240 | 68850 | NNU 41/1120 | 44827/1120 | 1279 | - | 1176 | 1253 | - | 1717 | 1286 | 6 | 5600 | |
| 1180 | 1540 | 355 | 7.5 | 10710 | 32400 | NNU 49/1180 | 44829/1180 | 1285 | - | 1213 | 1270 | - | 1507 | 1293 | 6 | 1650 |
| 1850 | 670 | 7.5 | 33210 | 76500 | NNU 41/1180 | 44827/1180 | 1350 | - | 1227 | 1320 | - | 1817 | 1358 | 6 | 7200 | |
| 1250 | 1950 | 710 | 7.5 | 37620 | 88200 | NNU 41/1250 | 44827/1250 | 1426 | - | 1297 | 1396 | - | 1917 | 1434 | 6 | 8000 |
| 1320 | 1720 | 400 | 7.5 | 12420 | 38250 | NNU 49/1320 | 44829/1320 | 1440 | - | 1353 | 1420 | - | 1687 | 1448 | 6 | 3100 |
| 1720 | 400 | 7.5 | 13800 | 42500 | NN49/1320 | 42829/1320 | - | 1620 | 1353 | - | 1640 | 1687 | - | 6 | 3060 | |
| 2060 | 750 | 7.5 | 41130 | 95400 | NNU 41/1320 | 44827/1320 | 1507 | - | 1367 | 1474 | - | 2027 | 1515 | 6 | 9400 | |
| 1400 | 2180 | 775 | 9.5 | 44550 | 104400 | NNU 41/1400 | 44827/1400 | 1598 | - | 1470 | 1564 | - | 2140 | 1608 | 8 | 10700 |
| 1500 | 2300 | 800 | 9.5 | 47520 | 118800 | NNU 41/1500 | 44827/1500 | 1709 | - | 1570 | 1674 | - | 12300 | |||
FAQ:
Vraag: Is uw bedrijf een handelsbedrijf of een fabriek?
A: Wij zijn in de fabriek, ons bedrijf heeft een professioneel verkoopteam voor de buitenlandse handel en een ervaren technisch ondersteuningsteam.
Vraag: Wat is de prijstermijn?
A: FOB ShenZhen- of EXW-fabriek
Vraag: Wat is de garantietijd?
A: 12 maanden na verzendingsdatum.
Vraag: Hoe plaats ik een bestelling?
A: Praat met het servicepersoneel, bevestig de details en plaats vervolgens de bestelling.
